Solar Star Light -Ⅰ
Come from nature, Light up the future

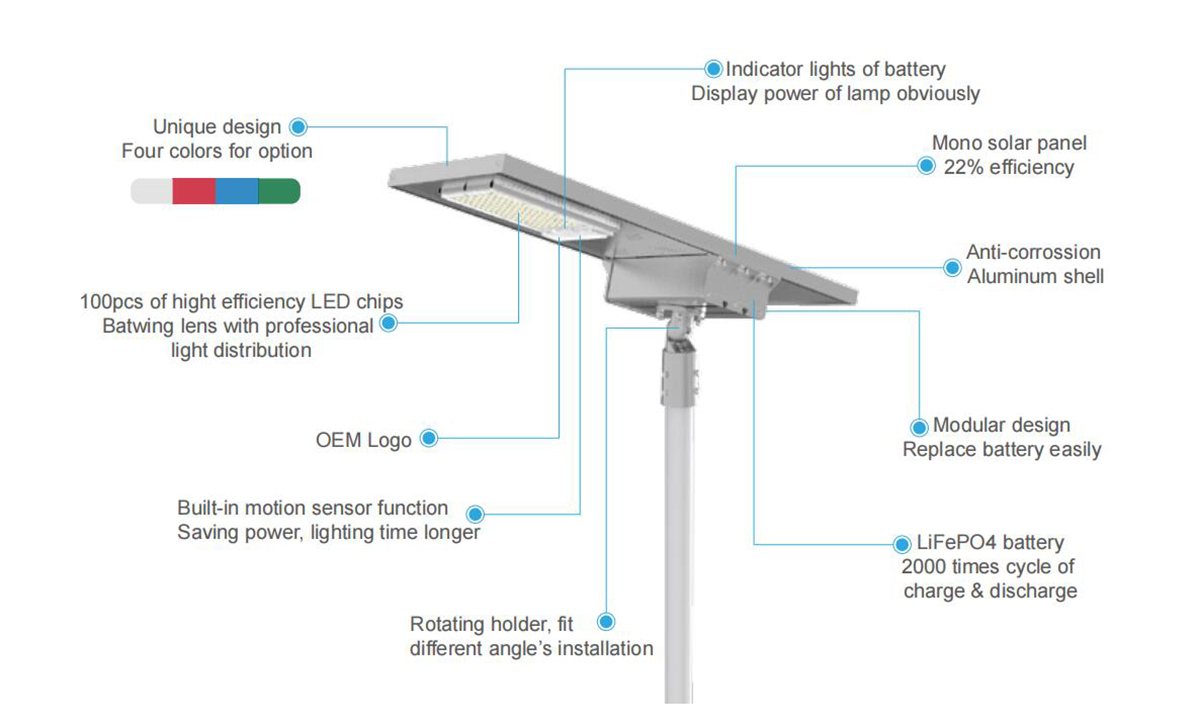

Integrated design of solar panel, microcomputer controller, lithium battery and high-efficiency LED light source
Modular design of battery and LED chip, transportation, installation and maintenance are more economical and simple

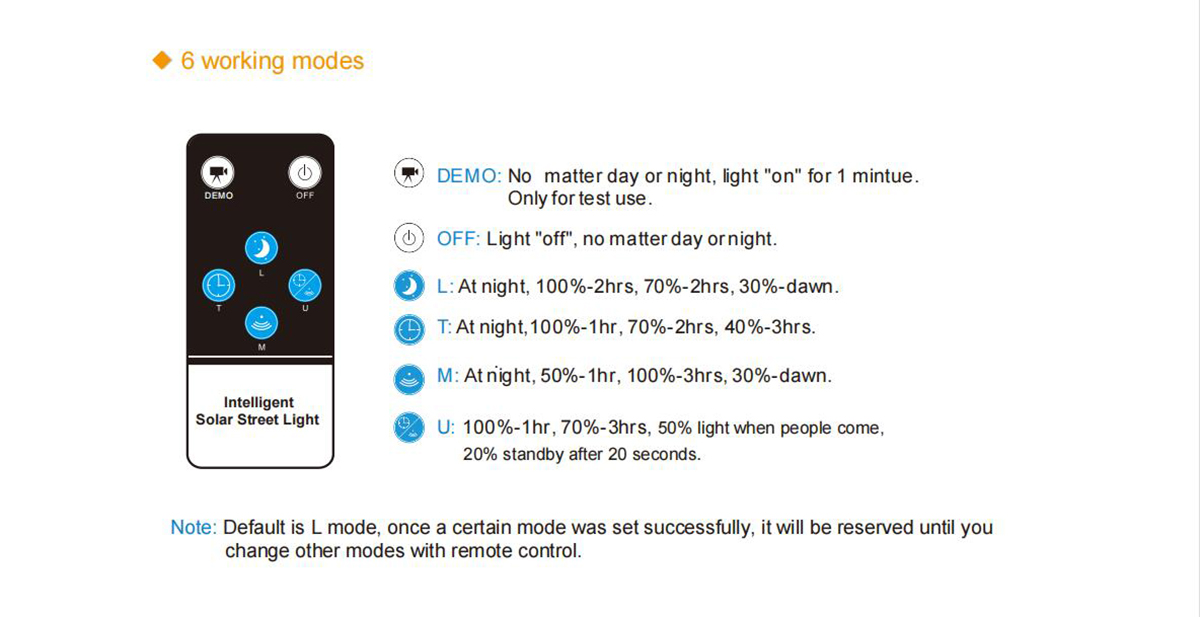

Road Smart self-developed solar controller can adjust different working modes freely, unique control system with more functions, stability is more stronger; Option of microwave induction function to save power and have longer lighting time
Upgraded intelligent power control function to regulater reasonable discharge power according to intelligent judgment of recent weather conditions, support longer lighting time and more rainy days
100pcs of 3030 lamp chips, optimized brightness, the whole lighting effeciency is greater than 160lm/w
Double protection of charging and discharging by software and hardware, and intelligent equalization technology, cycle charging and discharging more than 2000 times
Equipped with patented lens to make the irradiation area more uniform
Indicator lights of battery capacity display the power of the lamp obviously, which is convenient to observe the charging and discharging of the lamp
The illumination area and angle of light can be adjusted reasonably according to the width of the road
| Type |
ST1-20
|
ST1-30
|
ST1-40 |
| Solar panel |
36W/5V
|
45W/6V | 60W/6V |
|
LiFePO4 battery
|
192WH | 256WH | 320WH |
|
Charge cycle times
|
2000 times
|
||
|
Luminous flux
|
2600LM
|
3900LM | 5200LM |
|
Lamp power
|
20W
|
30W | 40W |
|
LED qty
|
100pcs
|
||
|
Lifespan of LED
|
50000 hrs
|
||
|
Color temperature
|
3000-7500K
|
||
|

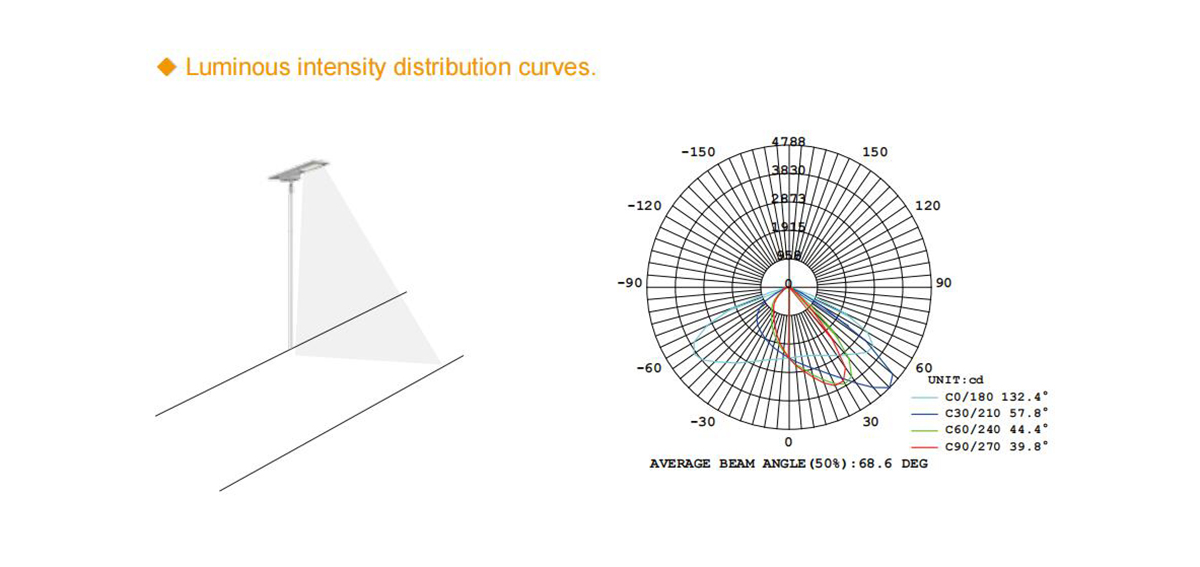

Light distribution
|
Batwing lens with polarized light
|
||
|
Lighting time
|
5-7 rainy days | ||
| Working temperature | -20℃~60℃ | ||
| Mounting height | 5-8m | ||
| Installation spacing |
20-30m
|
||
LED Chip
MPT multi-string protection
board test system
Waterproof Test
High/low Temperature Test
Anti-shocking Test
Multi-channel temperature
recorder
