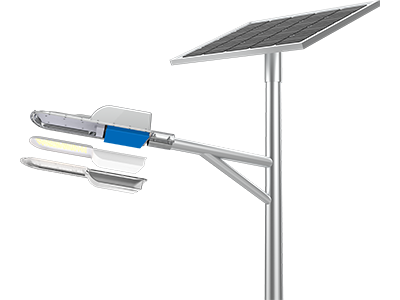

Split Type Solar Street Light
Solar Street Light (YH series)
Need extra height for trees or large flowerbeds? The YH post tops use bat-wing optics to spread even illumination, turning them into standout outdoor garden solar lights for parks, campuses and community greens.
Learn More About：
Split Type Solar Street Light
Download:
Solar Street Light (YH series)
Applications:
| Type | YH-100-M | YH-120-M |
| Solar Panel | 100W / 18V | 120W / 18V |
| LiFePO4 Battery | 320WH | 384WH |
| Charge Cycle Times | 2000 times | |
| Luminous Flux | 6400LM | 8000LM |
| Lamp Power | 40W | 50W |
| LED qty | 140pcs | |
| Lifespan of LED | 50000hrs | |
| Color Temperature | 6000-7000K | |
| Light Distribution | Batwing lens with polarized light | |
| Lighting time(full charged) | 5-7 rainy days | |
| Working temperature | -20℃~60℃ (Charge above 0℃) | |
| Top diameter of pole | 60mm | |
| Mounting height | 7-8m | 8-10m |
| Installation spacing | 20-40m | |

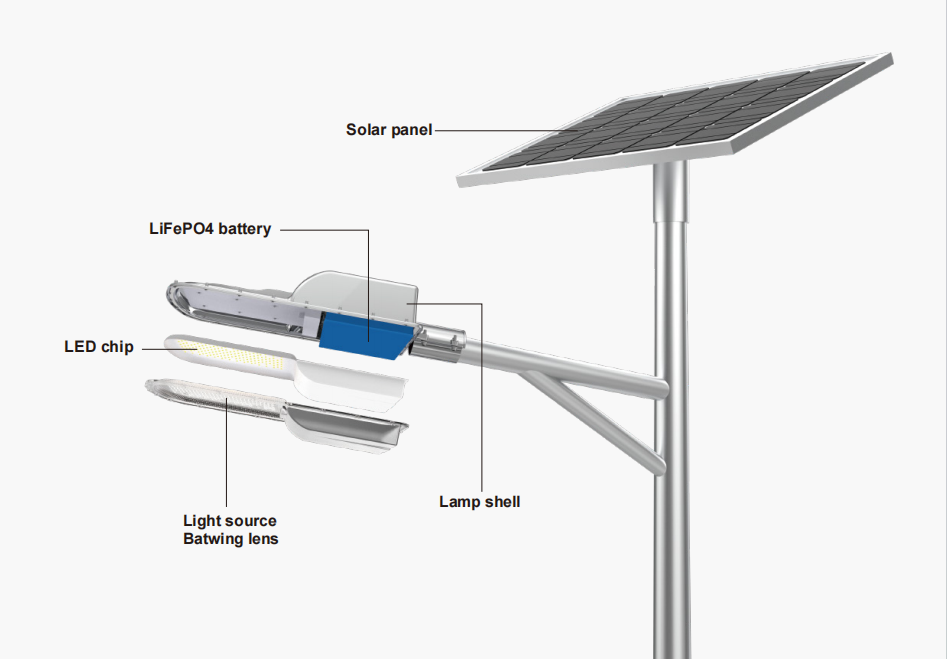

Structure
LiFePO₄ Battery
Grade-A cells deliver stable power and long service life across all three families.
Read More
Solar Panel
High-efficiency mono modules matched to each model's power draw.
Read More
LED Chip / Light Source
Premium 3030 or 5050 LEDs tuned for garden ambience or accent beams.
Read More
Lamp Shell
Anodised or powder-coated aluminum housings in post, spike or globe formats withstand outdoor extremes.
Read More
Bat-Wing Lens
RoadSmart's patented optic widens beam spread, eliminating dark spots while keeping glare low.
Read More
IPC 5.0 Technology
Five-stage intelligent power,intelligent algorithm to achieve perfect balance of
brightness and discharge time.
Read More
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Suppor
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
More Intelligent Solar Street Light Models
FAQ
What maintenance is needed?
Occasional panel cleaning; on-board LEDs indicate status so faults are spotted instantly.
Can I adjust brightness?
Multiple preset modes are selectable via a handheld remote for custom light levels.
Why select YH posts for large landscapes?
Taller poles and bat-wing optics extend coverage over trees, flowerbeds and open lawns.
