Integrated Solar Street Light
Solar Sailing Light Ⅲ
Upgrade to the next level of all-in-two solar street light technology. Solar Sailing Light Ⅲ features a tilt-adjustable “sail” panel for maximum solar harvest plus a separate LED module for flexible aiming.
Learn More About：
Integrated Solar Street Light
Download:
Solar Sailing Light Ⅲ
Applications:
| Type | RS-SL200P | RS-SL300P |
| Solar Panel | 120W / 18V | 150W / 18V |
| LiFePO4 Battery | 512WH | 576WH |
| Charge Cycle Times | 2000 times | |
| Luminous Flux | 11900-12600LM | 13600-14400LM |
| Lamp Power | 80W | 100W |
| LED qty | 140pcs | |
| Lifespan of LED | 50000hrs | |
| Color Temperature | 3000-7500K | |
| Light Distribution | Batwing lens with polarized light | |
| Lighting time(full charged) | 5-7 rainy days | |
| Working temperature | -20℃~60℃ (Charge above 0℃) | |
| Top diameter of pole | 76mm | |
| Mounting height | 8-10m | 9-10m |
| Installation spacing | 30-40m | |

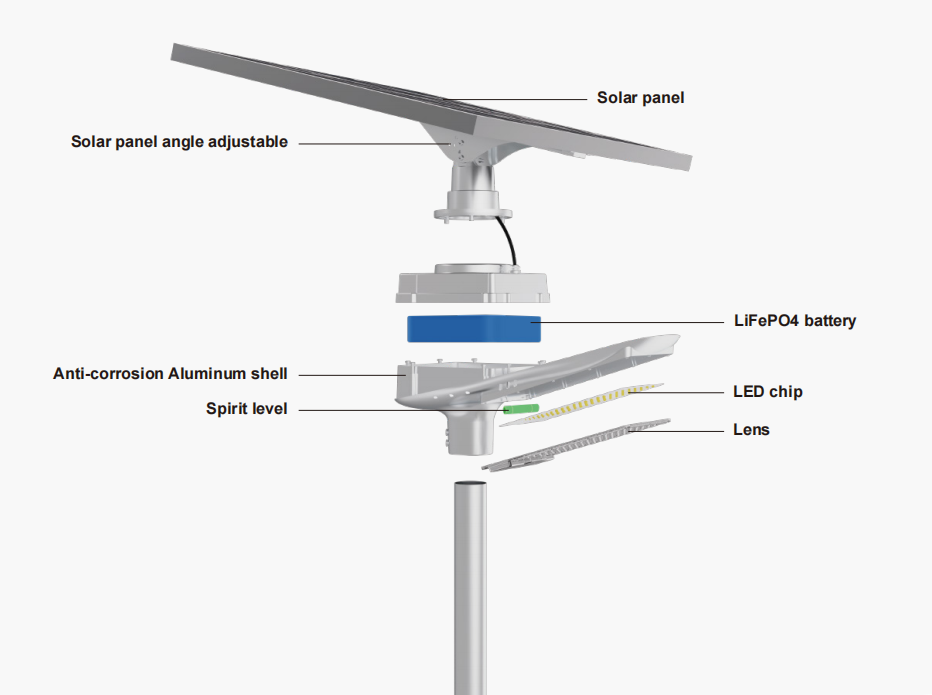

Structure
Solar Panel Angle Adjustable
Tilting “sail” bracket lets installers set the panel’s pitch for optimal seasonal harvest.
Read More
Solar Panel
High-efficiency mono module bonded to an aerodynamic aluminum frame.
Read More
Anti-corrosion Aluminum Shell
Marine-grade enclosure protects electronics in seaside or desert climates.
Read More
LiFePO₄ Battery
Single-string pack housed inside the arm for balanced weight and easy service.
Read More
Spirit Level
Built-in bubble level speeds precise alignment during pole-top installation.
Read More
Lens
RoadSmart patent bat-wing lens delivers wide, uniform light with minimal glare.
Read More
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Suppor
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
More Intelligent Solar Street Light Models
FAQ
Does Sailing Ⅲ support smart dimming schedules?
Built-in IPC 5.0 offers preset dim/bright intervals and motion-sensor activation, all selectable via handheld remote.
Can the panel angle be changed after installation?
Yes. The adjustable bracket allows on-site tilt changes with a single wrench, improving winter energy capture in high-latitude regions.
What makes Sailing Ⅲ an all-in-two solar street light?
The LED head and LiFePO₄ battery form one module, while the tilt-adjustable “sail” panel mounts separately, letting you optimize the solar angle without extra wiring.
