Integrated Solar Street Light
Solar Street Light (YY series)
Compact yet powerful, YP spike lights accent sculptures and shrubs with focused beams. An ultra-clear lens and single-string MPPT charger maximise every ray, making YP the go-to choice when only premium solar LED garden lights and dependable garden solar powered lights will do.
Learn More About：
Integrated Solar Street Light
Download:
Solar Street Light (YY series)
Applications:
| Type | YY-80 | YY-100 |
| Solar Panel | 60W / 5V | 85W / 6V |
| LiFePO4 Battery | 192WH | 256WH |
| Charge Cycle Times | 2000 times | |
| Luminous Flux | 3400LM | 4800LM |
| Lamp Power | 20W | 30W |
| LED qty | 120pcs | |
| Lifespan of LED | 50000hrs | |
| Color Temperature | 6000-7000K | |
| Light Distribution | Batwing lens with polarized light | |
| Lighting time(full charged) | 5-7 rainy days | |
| Working temperature | -20℃~60℃ (Charge above 0℃) | |
| Top diameter of pole | 60mm | |
| Mounting height | 5-6m | 7-8m |
| Installation spacing | 20-40m | |

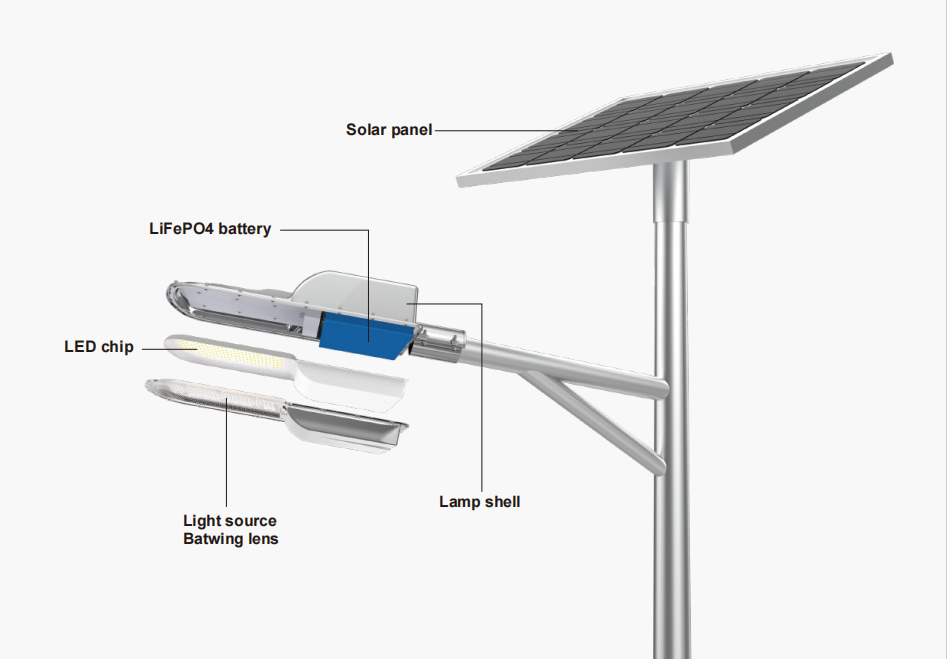

Structure
Solar Panel
High-efficiency mono modules matched to each model's power draw.
Read More
LiFePO₄ Battery
Grade-A cells deliver stable power and long service life across all three families.
Read More
LED Chip / Light Source
Premium 3030 or 5050 LEDs tuned for garden ambience or accent beams.
Read More
Lamp Shell
Anodised or powder-coated aluminum housings in post, spike or globe formats withstand outdoor extremes.
Read More
Bat-Wing Lens
RoadSmart's patented optic widens beam spread, eliminating dark spots while keeping glare low.
Read More
IPC 5.0 Technology
Five-stage intelligent power,intelligent algorithm to achieve perfect balance of
brightness and discharge time.
Read More
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Suppor
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys

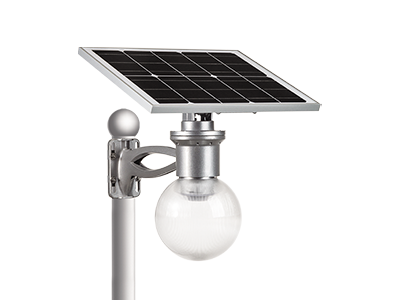

More Intelligent Solar Street Light Models
FAQ
Are YY globes durable outdoors?
UV-stable polycarbonate and IP65 sealing defend against fading, rain and dust for years of reliable service.
How are they powered?
Integrated mono-crystalline panels and LiFePO₄ batteries provide wire-free, solar-powered operation.
What aesthetic does YY deliver?
A glowing globe design that doubles as garden décor and 360-degree ambient lighting.
